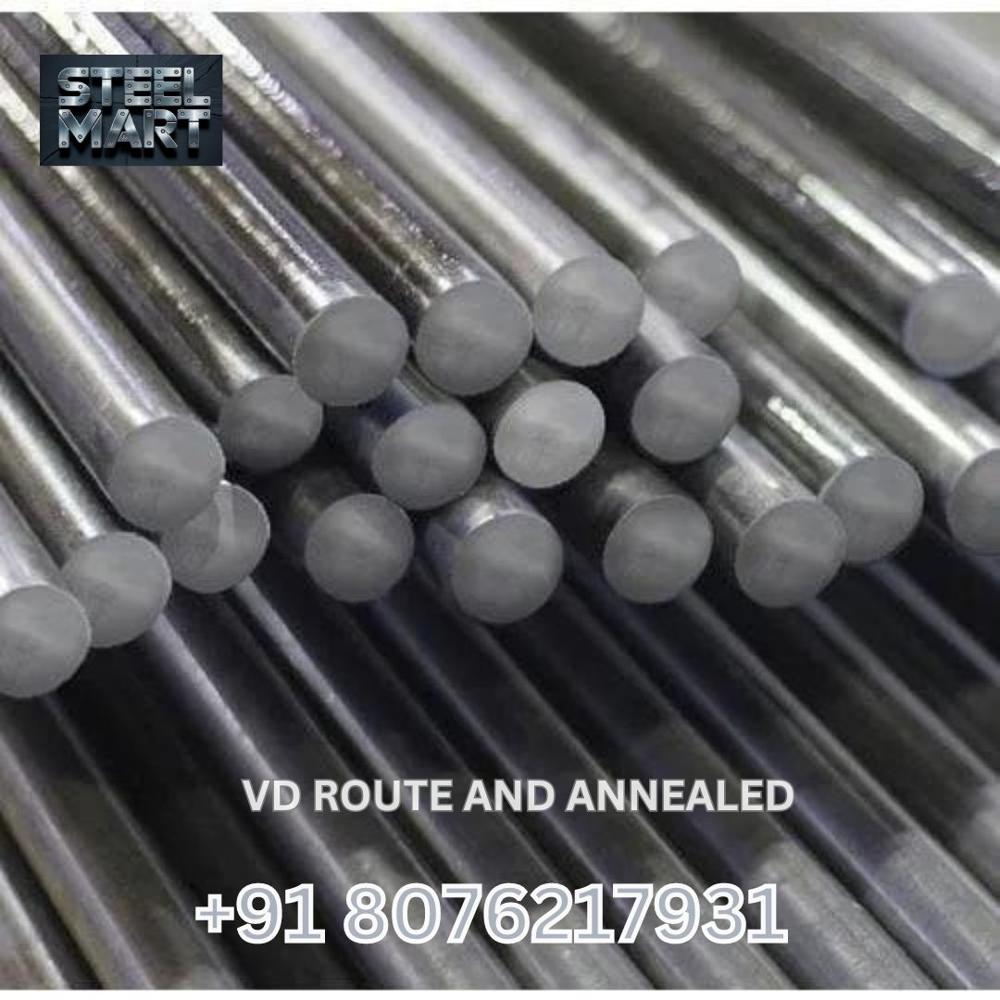

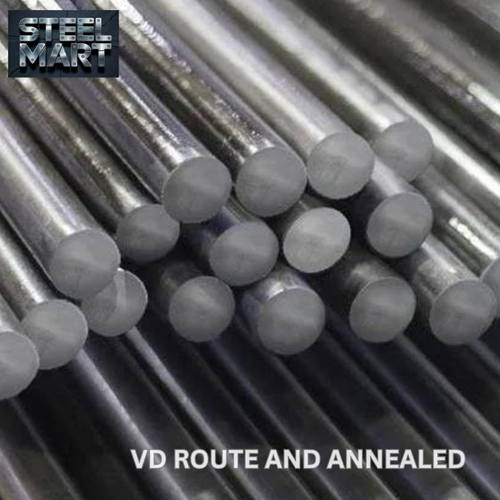

EN19 VD Route And Annealed Forged Round Bar

Price 79.0 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

EN19 VD Route And Annealed Forged Round Bar Specification

Min Order Quantity
1 ton

Ultrasonic Tested
Yes

Non-magnetic
Yes

Annealed State
Yes

Processing Method
Hot Forged

Delivery Condition
Annealed

Impact Strength
High

Custom Lengths
Available

Machinability
Good

EN19 VD Route And Annealed Forged Round Bar Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Kilograms Per Month

Delivery Time
7 Days

Main Domestic Market
Jammu and Kashmir, Madhya Pradesh, Bihar, Uttar Pradesh, Haryana, Rajasthan, Himachal Pradesh, Chhattisgarh, Punjab

About EN19 VD Route And Annealed Forged Round Bar

EN19 steel, also known as 709M40 or AISI 4140, is a high-quality alloy steel known for its excellent tensile strength, ductility, and shock resistance. It is widely used in applications requiring high loading and wear resistance, such as gears, shafts, and spindles.

Key Features of EN19 Steel:

Composition: EN19 steel typically contains 0.35-0.45% carbon, 0.50-0.80% manganese, 0.90-1.50% chromium, 0.20-0.40% molybdenum, and small amounts of silicon, sulfur, and phosphorus1.
Mechanical Properties: It offers good tensile strength, typically around 850-1000 N/mm, and a yield strength of about 680-755 N/mm2.
Heat Treatment: EN19 can be heat treated to improve its mechanical properties. It is often supplied in the normalized or annealed condition to enhance its machinability and toughness3.

VD Route:

The Vacuum Degassing (VD) route is a steelmaking process that removes dissolved gases like hydrogen and nitrogen from the molten steel. This process improves the steels quality by reducing the risk of defects and enhancing its mechanical properties1.

Annealed Round Bars:

Annealed round bars of EN19 steel are heat-treated to relieve internal stresses and improve machinability. The annealing process involves heating the steel to a specific temperature (typically between 680-700C) and then slowly cooling it. This results in a softer and more ductile material, making it easier to machine and form4.

Applications:

EN19 steel round bars are widely used in the manufacturing of:

Gears
Shafts
Spindles
Bolts
Automotive components
General engineering components

Exceptional Mechanical Properties

This round bar is engineered with high impact strength and excellent machinability, making it suitable for critical components in engineering, automotive, and construction applications. The annealed, non-magnetic state enhances its versatility and reliability under varying operational demands.

Quality Assurance and Customization

Each EN19 VD Route Forged Round Bar is rigorously ultrasonic tested to ensure flawlessness and durability. With custom length options and a minimum order quantity of 1 ton, customers gain tailored solutions for their unique specifications. Delivered in fully annealed condition, it offers increased flexibility during fabrication.

FAQ's of EN19 VD Route And Annealed Forged Round Bar:

Q: How is the EN19 VD Route and Annealed Forged Round Bar processed?

A: The bar is manufactured through a hot forging process followed by annealing, which refines the internal structure and boosts machinability and impact strength for industrial use.

Q: What testing is performed on these round bars to ensure quality?

A: Ultrasonic testing is carried out on every bar to detect internal flaws or inconsistencies, ensuring that only high-quality, defect-free products are supplied to customers.

Q: When can custom lengths be requested for EN19 Annealed Forged Round Bars?

A: Custom lengths are available at the time of ordering, with a minimum order quantity of 1 ton, allowing users to match their exact requirements for different applications.

Q: Where can these round bars be sourced within India?

A: These bars can be obtained from a variety of suppliers in India, including dealers, distributors, exporters, importers, manufacturers, producers, retailers, service providers, traders, and wholesalers.

Q: What are the main benefits of using EN19 VD Route Forged Round Bar in manufacturing?

A: The primary advantages include non-magnetic properties, high impact strength, good machinability, and strict ultrasonic quality testing, making them ideal for safety-critical and precision engineering tasks.

Q: How does the annealed condition influence usage?

A: Delivery in an annealed condition makes the bars easier to machine and fabricate, streamlining production processes and enhancing adaptability for custom parts and assemblies.
