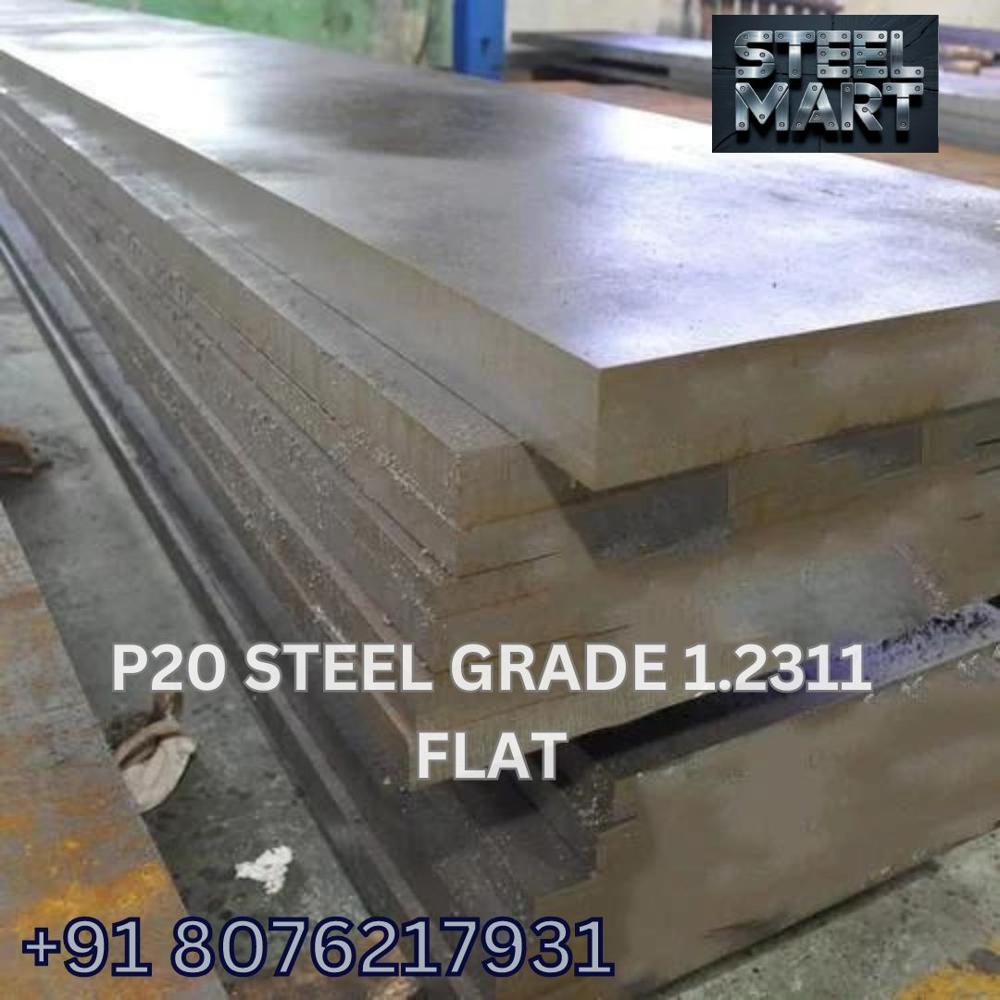

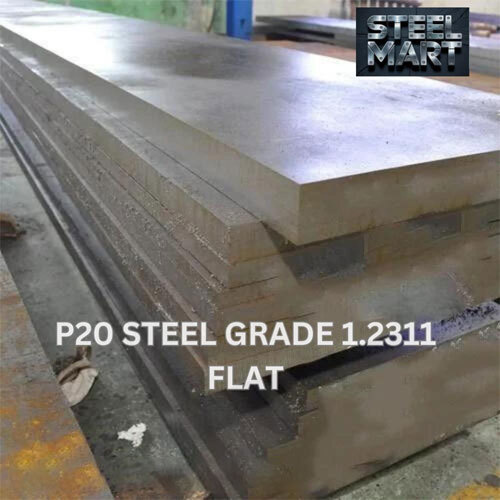

P20 Steel Grade 1.2311 Flat

Price 140.0 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

P20 Steel Grade 1.2311 Flat Specification

Weldability
Limited

Precision Ground
Available

Fatigue Strength
Good

Flatness Tolerance
Strict control

Machinability
Good

Stock Length
Standard or cut-length

Thermal Conductivity
Medium

Delivery Condition
Prehardened

Decarb Free
Upon request

Shock Resistance
Medium

Max Length
up to 6000 mm

P20 Steel Grade 1.2311 Flat Trade Information

Minimum Order Quantity
100 Kilograms

Supply Ability
100 Kilograms Per Month

Delivery Time
7 Days

Sample Available
No

About P20 Steel Grade 1.2311 Flat

Steel World is stockiest, supplier,dealer and manufacturer of the P20 Steel Grade 1.2311 Flat. P20 Steel Grade 1.2311 Plate:

Material Description:
- P20 (1.2311) is a versatile, low-alloy tool steel characterized by good toughness at moderate strength levels.
- Commonly used for plastic injection mold cavities and tooling, as well as for die casting dies for zinc.
- Typically sold in the pre-hardened condition with a hardness of approximately 300 HBW.
Composition:
- Carbon : Around 0.280.40%.
- Silicon (Si): Approximately 0.200.80%.
- Manganese (Mn): Usually 0.601.00%.
- Chromium (Cr): Typically 1.402.00%.
- Nickel (Ni): Often 0.801.20%.
Mechanical Properties (Room Temperature, hardened and tempered to 321 BHN):
- Yield Strength: 130 KSI.
- Tensile Strength: 150 KSI.
- Elongation: 15%.
- Reduction Area: 35%.
Heat Treatment:
- Stress Relieving Temperature: 850F900F (Hold 1 hour per inch; air cool).
- Tempering: Heat uniformly and thoroughly at the selected temperature, holding for one hour per inch of total thickness.
Physical Properties:
- Density: Approximately 0.284 lbs/in at room temperature.
- Coefficient of Thermal Expansion:
  - 700F2000F: 6.8 x 10/F.
  - 700F4000F: 7.0 x 10/F.
  - 700F5750F: 7.1 x 10/F.
- Thermal Conductivity:
  - 700F: 202 Btu/in/ft/hr/F.
  - 4000F: 209 Btu/in/ft/hr/F.
  - 8000F: 216 Btu/in/ft/hr/F.

Versatile Prehardened Tool Steel

P20 Steel Grade 1.2311 Flat combines good machinability with prehardened delivery conditions, making it a reliable choice for mold making and engineering applications. Its balanced mechanical properties and strict flatness tolerance allow for precision-focused projects, while the option to obtain a decarb free surface enhances durability and surface quality. This versatile steel is available in various lengths tailored to customer specifications.

Strictly Controlled Quality

We ensure that every P20 Steel Grade 1.2311 Flat meets demanding standards for flatness and mechanical properties. With precision grinding options and supply in both standard and custom lengths, our steel products fulfill the needs of manufacturers, toolmakers, and engineering service providers. Each product batch undergoes thorough inspection to maintain quality and consistency.

FAQ's of P20 Steel Grade 1.2311 Flat:

Q: How can I order P20 Steel Grade 1.2311 Flat in specific lengths?

A: You can request P20 Steel Grade 1.2311 Flat in standard stock lengths or specify your required size, up to a maximum of 6000 mm. Our team accommodates both standard and cut-to-size orders to best match your project requirements.

Q: What are the recommended applications for P20 Steel Flat with good machinability?

A: P20 Steel 1.2311 Flat is commonly used in plastic injection molds, die casting dies, and general engineering components where a combination of good machinability, durability, and surface precision is essential.

Q: When should I consider requesting a decarb free surface for this flat steel?

A: A decarb free surface is advised if your application involves high surface finish demands or subsequent heat treatments. Requesting decarb free ensures optimal surface properties and consistent hardness throughout the material.

Q: Where is P20 Steel Grade 1.2311 Flat supplied from and distributed to?

A: We supply P20 Steel Grade 1.2311 Flat across India as well as export to international markets. As importers, distributors, and service providers, we can fulfill bulk and specialized orders for a wide range of customers.

Q: What are the benefits of selecting P20 1.2311 Flat with strict flatness tolerance?

A: Strict flatness tolerance enhances component consistency and ease of assembly, reducing the need for additional finishing operations. This quality is particularly valuable in precision tooling and mold manufacturing.

Q: How is the machinability of P20 1.2311 Flat advantageous during the manufacturing process?

A: With good machinability, P20 Steel 1.2311 Flat allows for efficient turning, milling, and drilling, minimizing tool wear and production time, which leads to lower manufacturing costs and improved productivity.
