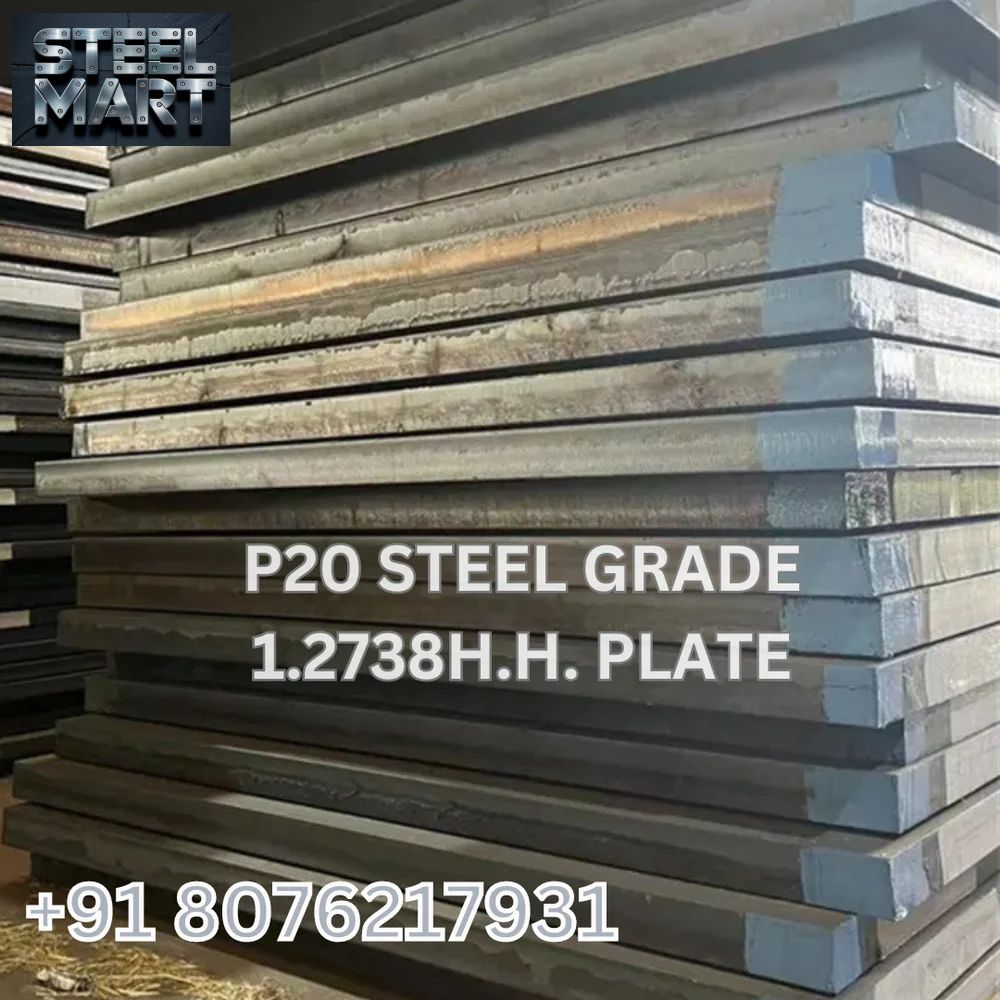

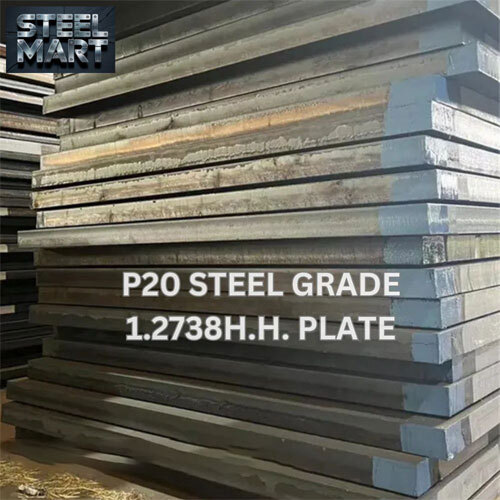

P20 Steel Grade 1.2738H.H. Plate

Price 240.0 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

P20 Steel Grade 1.2738H.H. Plate Specification

Delivery State
Pre-hardened

Microstructure
Homogeneous

Nickel Content
Enhanced

Flatness Tolerance
High Precision

Machinability
Good

Impact Toughness
High

Formability
Moderate

Weldability
Fair

Stock Availability
Ready Stock

Edge Condition
Cut or Sheared

P20 Steel Grade 1.2738H.H. Plate Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Kilograms Per Month

Delivery Time
7 Days

Sample Available
No

Main Domestic Market
All India

About P20 Steel Grade 1.2738H.H. Plate

Steel World is stockiest, supplier,dealer and manufacturer of the P20 Steel Grade 1.2738H.H. Plate. P20 Steel Grade 1.2738H.H. Plate:

Material Description:
- P20 High Hard (1.2738H.H.) is an improved pre-hardened mold steel specifically designed for large plastic molds.
- It undergoes forging on a 5000-ton press, ensuring maximum deformation during the forging process.
- Supplied hardness ranges from 321 to 352 HB (34-38 HRC), with minimal hardness loss in large cross sections.
Characteristics:
- Homogeneous Strength: Suitable even for large dimensions.
- Applications:
  - Big cavity plates with deep cavities.
  - Highly stressed core components.
Heat Treatment:
- Stress Relieving Temperature: 850F - 900F (Hold 1 hour per inch; air cool).
- Tempering: Heat uniformly and thoroughly at the selected temperature, holding for one hour per inch of total thickness.
Physical Properties:
- Density: Approximately 0.284 lbs/in at room temperature.
- Coefficient of Thermal Expansion:
  - 700F 2000F: 6.8 x 10/F
  - 700F 4000F: 7.0 x 10/F
  - 700F 5750F: 7.1 x 10/F
- Thermal Conductivity:
  - 700F: 202 Btu/in/ft/hr/F
  - 4000F: 209 Btu/in/ft/hr/F
  - 8000F: 216 Btu/in/ft/hr/F
Mechanical Properties (Room Temperature, hardened and tempered to 321 BHN):
- Yield Strength: 130 KSI
- Tensile Strength: 150 KSI
- Elongation: 15%
- Reduction Area: 35%
Welding:
- Preheat insert to 900F 1000F and maintain temperature above 800F during welding.
- Use TIG with D.C. positive polarity.
- Slowly cool down to 350F before post-heat treatment.
Polishing:
- Can achieve an A-2 surface finish with proper procedures.
- Caution to avoid over-polishing (orange peel effect and pitting).

Outstanding Machinability and Strength

Thanks to a homogeneous microstructure and enhanced nickel content, P20 Steel Grade 1.2738H.H. Plates boast excellent machinability, reducing tool wear while delivering consistent and reliable performance. Their pre-hardened state provides high impact toughness, making them particularly suitable for mold, die, and tooling applications where precision and resilience are essential.

Versatile Supply and Availability Across India

We maintain ready stock of P20 1.2738H.H. Plates, ensuring prompt delivery for urgent industrial demands. Our network serves manufacturers, wholesalers, traders, and service providers throughout India. Options include cut or sheared edge conditions to match diverse project specifications, supporting efficient integration into varied production processes.

FAQ's of P20 Steel Grade 1.2738H.H. Plate:

Q: How is P20 Steel Grade 1.2738H.H. Plate typically used in manufacturing?

A: These plates are frequently utilized in the production of plastic injection molds, die casting tools, and components requiring high toughness and dimensional accuracy, due to their pre-hardened state, high impact resistance, and consistent machinability.

Q: What are the main benefits of choosing P20 1.2738H.H. Plate with enhanced nickel content?

A: Enhanced nickel content improves toughness and extends the plate's lifespan by bolstering strength and resistance to wear. This feature delivers greater reliability in demanding industrial settings.

Q: When should I select high-precision flatness tolerance plates for my project?

A: High-precision flatness tolerance is recommended when your application requires minimal warping or deviations, ensuring optimal structural integrity and dimensional accuracy, especially in tooling and mold-making.

Q: Where can I source P20 1.2738H.H. Plates in India?

A: As a leading supplier, dealer, manufacturer, and exporter, we offer P20 plates with quick dispatch throughout India. Our broad distribution network ensures availability for immediate requirements in all major industrial hubs.

Q: What is the recommended process for machining these plates?

A: Given their pre-hardened and homogeneous microstructure, standard high-speed steel or carbide tools are effective for machining. Proper coolant and moderate speeds should be used to maintain surface finish and tool longevity.

Q: Are these plates easy to form or weld during fabrication?

A: While offering moderate formability and fair weldability, these plates are best suited for forming and welding within standard parameters. Pre- and post-weld treatments are advised to maximize performance when welding is necessary.
