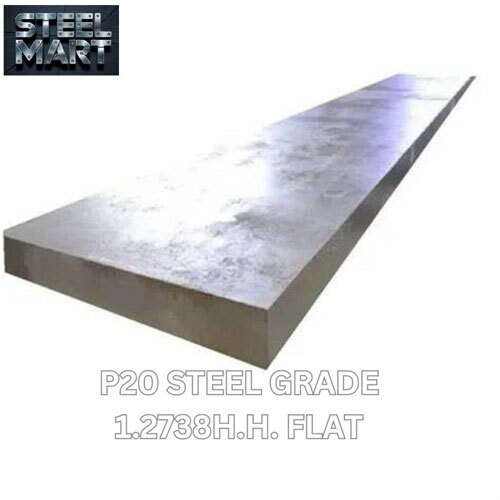

P20 Steel Grade 1.2738H.H. Flat

Price 240.0 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

P20 Steel Grade 1.2738H.H. Flat Specification

Wear Resistance
High

Machinability
Excellent

Microstructure
Uniform fine grain

Polishing Quality
Superior

De-carburization Layer
Minimal

Weldability
Good

Pre-hardened Hardness
HRC 30-36

Delivery Condition
Pre-hardened

Edge Condition
Square edges as supplied

P20 Steel Grade 1.2738H.H. Flat Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Kilograms Per Month

Delivery Time
7 Days

Sample Available
No

Main Domestic Market
All India

About P20 Steel Grade 1.2738H.H. Flat

Steel World is stockiest, supplier,dealer and manufacturer of the P20 Steel Grade 1.2738H.H. Flat. P20 Steel Grade 1.2738H.H. Plate:

Material Description:
- P20 High Hard (1.2738H.H.) is an improved pre-hardened mold steel specifically designed for large plastic molds.
- It undergoes forging on a 5000-ton press, ensuring maximum deformation during the forging process.
- Supplied hardness ranges from 321 to 352 HB (34-38 HRC), with minimal hardness loss in large cross sections.
Characteristics:
- Homogeneous Strength: Suitable even for large dimensions.
- Applications:
  - Big cavity plates with deep cavities.
  - Highly stressed core components.
Heat Treatment:
- Stress Relieving Temperature: 850F - 900F (Hold 1 hour per inch; air cool).
- Tempering: Heat uniformly and thoroughly at the selected temperature, holding for one hour per inch of total thickness.
Physical Properties:
- Density: Approximately 0.284 lbs/in at room temperature.
- Coefficient of Thermal Expansion:
  - 700F 2000F: 6.8 x 10/F
  - 700F 4000F: 7.0 x 10/F
  - 700F 5750F: 7.1 x 10/F
- Thermal Conductivity:
  - 700F: 202 Btu/in/ft/hr/F
  - 4000F: 209 Btu/in/ft/hr/F
  - 8000F: 216 Btu/in/ft/hr/F
Mechanical Properties (Room Temperature, hardened and tempered to 321 BHN):
- Yield Strength: 130 KSI
- Tensile Strength: 150 KSI
- Elongation: 15%
- Reduction Area: 35%
Welding:
- Preheat insert to 900F 1000F and maintain temperature above 800F during welding.
- Use TIG with D.C. positive polarity.
- Slowly cool down to 350F before post-heat treatment.
Polishing:
- Can achieve an A-2 surface finish with proper procedures.
- Caution to avoid over-polishing (orange peel effect and pitting).

Exceptional Machinability and Wear Resistance

P20 Steel Grade 1.2738H.H. Flat stands out for its excellent machinability and high wear resistance. This combination facilitates efficient manufacturing processes and extends the lifespan of molds and dies. Its high-quality microstructure ensures consistent results for complex machining projects.

Pre-Hardened Advantage & Superior Polishing

Supplied in a pre-hardened state (HRC 30-36), the steel is ready for immediate use, reducing post-processing time. Its exceptional polishing quality makes it ideal for applications requiring fine surface finishes, such as precision mold components and tooling inserts.

Reliable Sourcing Across India

This product is readily available through a wide range of suppliers, distributors, and other industry professionals throughout India. From wholesalers to retailers, customers can easily source P20 Steel Grade 1.2738H.H. Flat for their project needs, ensuring timely delivery and support.

FAQ's of P20 Steel Grade 1.2738H.H. Flat:

Q: How does the minimal de-carburization layer benefit the end user?

A: The minimal de-carburization layer ensures that the steel's surface retains its core hardness and integrity, allowing for superior wear resistance and durability in tooling and mold-making applications.

Q: What processes is P20 Steel Grade 1.2738H.H. Flat most suitable for?

A: This steel is especially suited for machining, polishing, and welding processes due to its excellent machinability, polishing quality, and good weldability. It is commonly used for manufacturing molds, dies, and tooling components.

Q: When should you select pre-hardened P20 1.2738H.H. Flat over other steel grades?

A: Choose pre-hardened P20 1.2738H.H. Flat when you need a steel that is ready for use without post-hardening treatments, particularly in applications demanding wear resistance, easy machinability, and a high-quality polished finish.

Q: Where can customers in India source P20 Steel Grade 1.2738H.H. Flat?

A: Customers across India can procure this steel from a robust network of dealers, distributors, exporters, manufacturers, suppliers, and retailers, ensuring accessibility and service support throughout the country.

Q: What is the benefit of the square edge condition supplied with this steel flat?

A: The square edge condition ensures precise dimensions and uniformity, making the steel flat easier to align and integrate into assemblies, which enhances overall manufacturing efficiency.

Q: How does the uniform fine grain microstructure impact the steel's performance?

A: A uniform fine grain microstructure contributes to the material's stability, consistent hardness, and superior polishability, resulting in reliable performance for intricate mold and tool applications.
