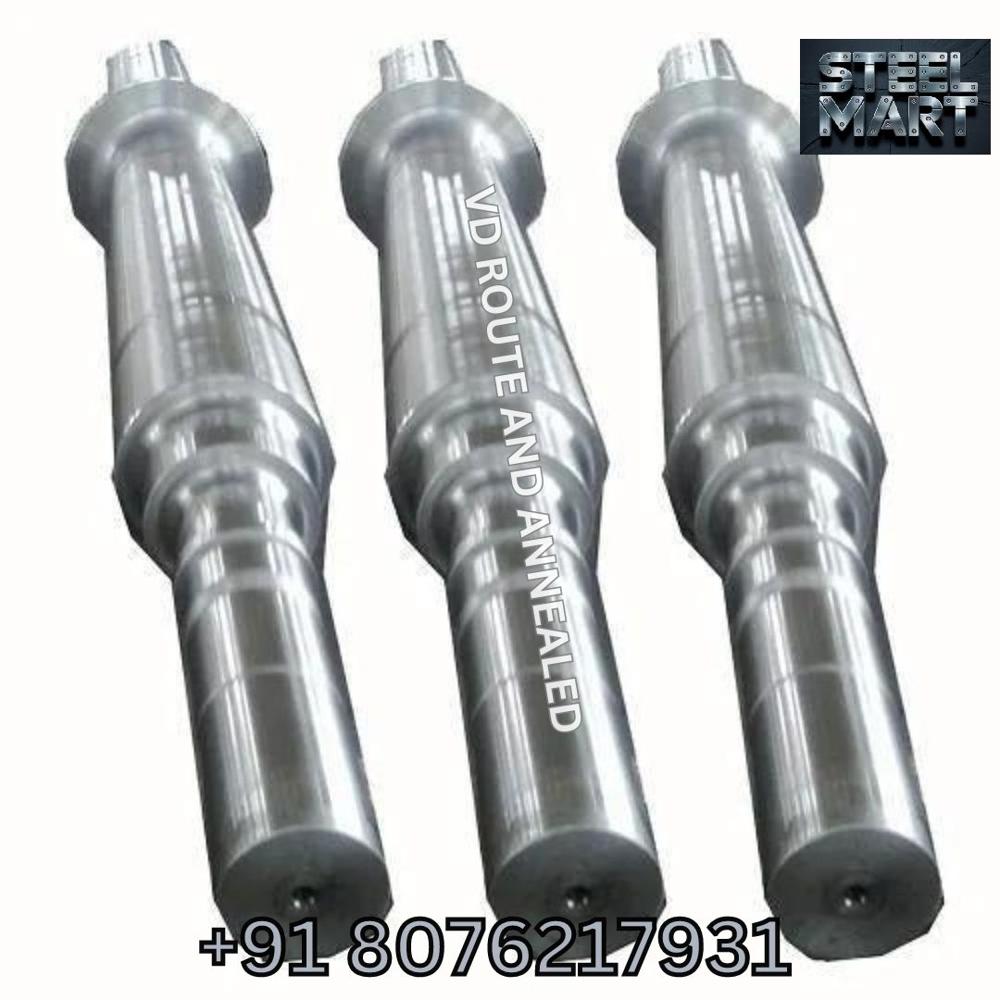

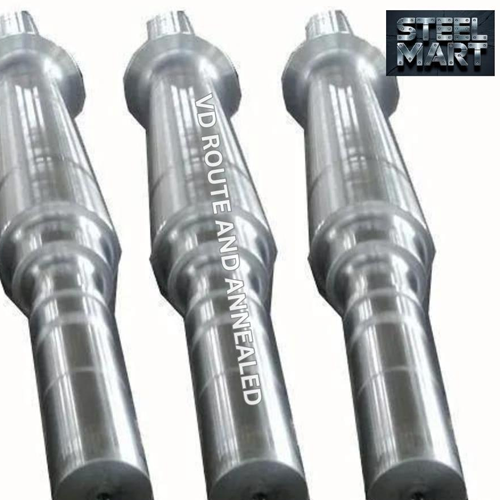

EN31 VD Route And Annealed Heavy Duty Forged Shaft

Price 80.0 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

EN31 VD Route And Annealed Heavy Duty Forged Shaft Specification

Annealing Process
VD route controlled

Forging Method
Open or closed die

Impact Strength
Superior

Bar Length
Custom cut lengths

Precision Tolerance
Tight per DIN

Order Quantity
Flexible MOQ

Export Packaging
Wooden case/wrapping

Machinability
Excellent

Edge Condition
Chamfered/rounded

Ultrasonic Testing
Available

OEM Support
Yes

Crack Resistance
High

Microstructure
Uniform, refined grain

Service Life
Extended

EN31 VD Route And Annealed Heavy Duty Forged Shaft Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Kilograms Per Month

Delivery Time
7 Days

Main Domestic Market
Bihar, Madhya Pradesh, Jammu and Kashmir, Punjab, Rajasthan, Himachal Pradesh, Chhattisgarh, Haryana, Uttar Pradesh

About EN31 VD Route And Annealed Heavy Duty Forged Shaft

EN31 steel, also known as SAE 52100, is a high-carbon alloy steel known for its excellent hardness, compressive strength, and abrasion resistance. It is widely used in applications requiring high wear resistance and durability, such as bearings, tools, and machine components.

Key Features of EN31 Steel:

Composition: EN31 steel typically contains 0.95-1.10% carbon, 0.40-0.70% manganese, 1.20-1.60% chromium, and small amounts of silicon, sulfur, and phosphorus1.
Mechanical Properties: It offers high tensile strength, typically around 750-800 N/mm, and a yield strength of about 450-500 N/mm2.
Heat Treatment: EN31 can be heat treated to improve its mechanical properties. It is often supplied in the annealed condition to enhance its machinability and toughness3.

VD Route:

The Vacuum Degassing (VD) route is a steelmaking process that removes dissolved gases like hydrogen and nitrogen from the molten steel. This process improves the steels quality by reducing the risk of defects and enhancing its mechanical properties1.

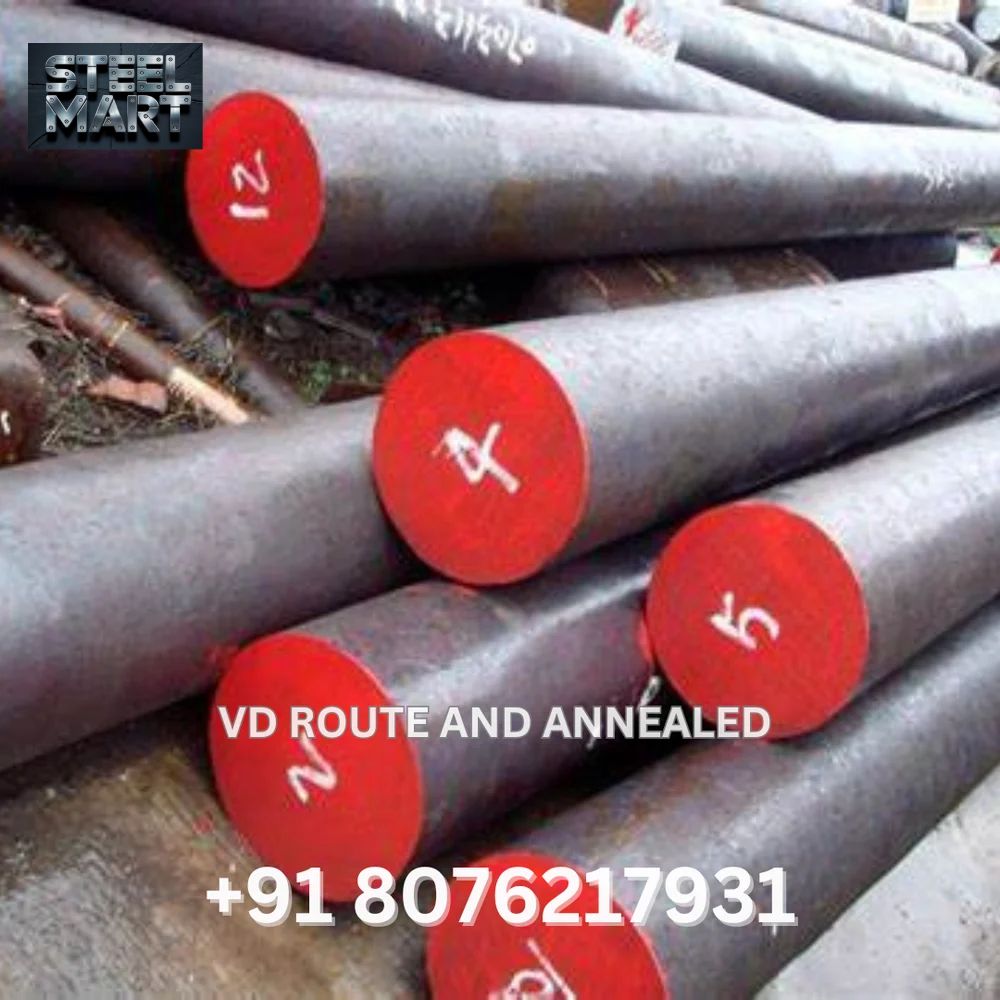

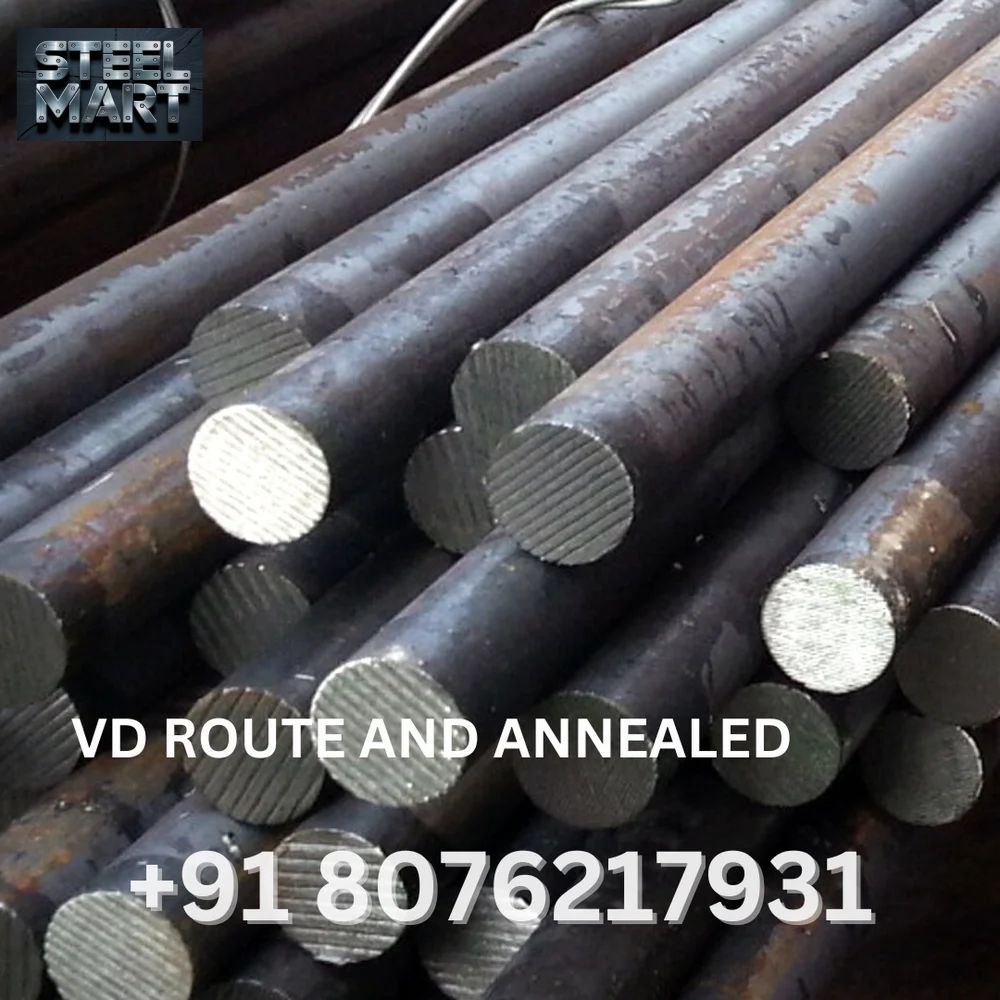

Annealed Round Bars:

Annealed round bars of EN31 steel are heat-treated to relieve internal stresses and improve machinability. The annealing process involves heating the steel to a specific temperature (typically around 800C) and then slowly cooling it. This results in a softer and more ductile material, making it easier to machine and form2.

Applications:

EN31 steel round bars are widely used in the manufacturing of:

Bearings
Tools
Machine components
Shafts
Gears

Outstanding Forging and Annealing Method

The EN31 heavy-duty shaft is produced via open or closed die forging, then annealed through a VD route-controlled process. This ensures thorough refinement of the microstructure, leading to enhanced crack resistance and consistent properties throughout the product.

Precision You Can Trust

Each shaft meets tight DIN precision tolerances and undergoes comprehensive ultrasonic testing. This strict quality control ensures high dimensional accuracy, superior impact strength, and allows for reliable performance even under challenging operating conditions.

Flexible and Custom Solutions

Bar lengths can be custom cut to your requirements, and flexible minimum order quantities make it simple for businesses of all sizes to order. We offer OEM support, various edge conditions, and export-grade packaging for safe global delivery.

FAQ's of EN31 VD Route And Annealed Heavy Duty Forged Shaft:

Q: How is the EN31 VD Route Forged Shaft manufactured?

A: The EN31 VD Route Forged Shaft is made using either open or closed die forging, followed by a VD route controlled annealing process. This combination ensures a refined grain structure, excellent mechanical properties, and high crack resistance.

Q: What makes this shaft suitable for heavy-duty applications?

A: This shaft offers superior impact strength, tight DIN precision tolerances, and high crack resistance, making it ideal for rigorous, high-load environments. Its uniform microstructure and extended service life contribute to reliable long-term performance.

Q: When should ultrasonic testing be requested for these shafts?

A: Ultrasonic testing is available for every shaft and is carried out to detect internal flaws or inconsistencies. It is especially recommended for critical applications where product integrity is paramount.

Q: Where can these shafts be used effectively?

A: These forged shafts are widely used across automotive, machinery, energy, and industrial equipment sectors. They are suitable wherever precision, durability, and high impact strength are essential.

Q: What are the benefits of the VD route controlled annealing process?

A: The VD route controlled annealing process enhances machinability, achieves a uniform and refined microstructure, and significantly increases crack resistance, resulting in longer service life and optimal performance.

Q: How does your company accommodate varying order quantities and customization?

A: We support flexible minimum order quantities and offer custom-cut bar lengths to meet unique customer requirements. OEM support and customizable edge conditions ensure our products fit diverse needs.
