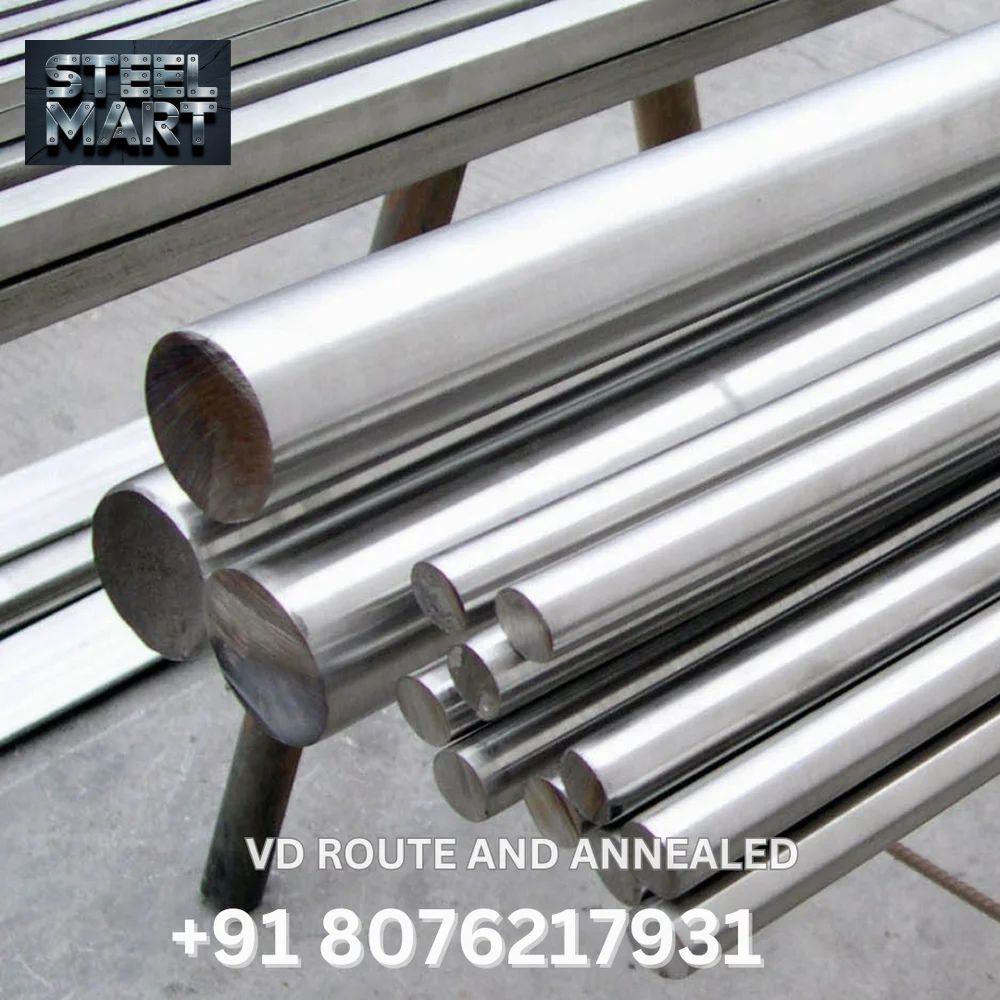

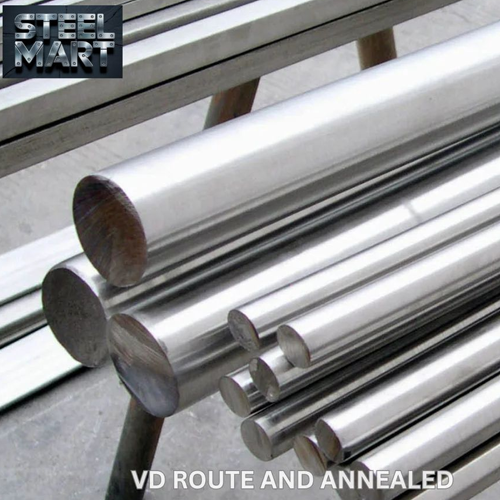

EN19 VD Route And Annealed Heavy Duty Forged Round Bar

Price 80.0 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

EN19 VD Route And Annealed Heavy Duty Forged Round Bar Specification

Impact Strength
High

Machinability
Good

Manufacturing Method
Heavy Duty Forging

Density
Approx. 7.85 g/cm³

Stock Availability
On order

Max Length
Up to 6 meters

Ultra Sonic Tested
Yes

Process Route
Vacuum Degassed

Thermal Treatment
Annealed Route

Stress Relieved
Yes

Minimum Order
Negotiable

Edge Condition
Smooth ends

Roundness Tolerance
Tight tolerance

Crack Tested
Yes

Delivery Condition
Annealed

Lead Time
As per order

EN19 VD Route And Annealed Heavy Duty Forged Round Bar Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Kilograms Per Month

Delivery Time
7 Days

Main Domestic Market
Uttar Pradesh, Haryana, Rajasthan, Himachal Pradesh, Chhattisgarh, Punjab, Jammu and Kashmir, Madhya Pradesh, Bihar

About EN19 VD Route And Annealed Heavy Duty Forged Round Bar

EN19 steel, also known as 709M40 or AISI 4140, is a high-quality alloy steel known for its excellent tensile strength, ductility, and shock resistance. It is widely used in applications requiring high loading and wear resistance, such as gears, shafts, and spindles.

Key Features of EN19 Steel:

Composition: EN19 steel typically contains 0.35-0.45% carbon, 0.50-0.80% manganese, 0.90-1.50% chromium, 0.20-0.40% molybdenum, and small amounts of silicon, sulfur, and phosphorus1.
Mechanical Properties: It offers good tensile strength, typically around 850-1000 N/mm, and a yield strength of about 680-755 N/mm2.
Heat Treatment: EN19 can be heat treated to improve its mechanical properties. It is often supplied in the normalized or annealed condition to enhance its machinability and toughness3.

VD Route:

The Vacuum Degassing (VD) route is a steelmaking process that removes dissolved gases like hydrogen and nitrogen from the molten steel. This process improves the steels quality by reducing the risk of defects and enhancing its mechanical properties1.

Annealed Round Bars:

Annealed round bars of EN19 steel are heat-treated to relieve internal stresses and improve machinability. The annealing process involves heating the steel to a specific temperature (typically between 680-700C) and then slowly cooling it. This results in a softer and more ductile material, making it easier to machine and form4.

Applications:

EN19 steel round bars are widely used in the manufacturing of:

Gears
Shafts
Spindles
Bolts
Automotive components
General engineering components

Superior Quality and Structural Integrity

Forged using state-of-the-art heavy duty processes, the EN19 VD Route and Annealed Round Bar undergoes vacuum degassing and thorough annealing. This ensures high impact strength, enhanced machinability, and consistent performance even in demanding environments. The strict testing regimen (ultra-sonic and crack tests) upholds superior reliability.

Flexible Supply and Order Management

With stock availability on order and delivery tailored to client requirements, customers benefit from on-demand production. Minimum order quantities are negotiable, and bars can be custom-produced up to 6 meters in length for a wide scope of applications.

FAQ's of EN19 VD Route And Annealed Heavy Duty Forged Round Bar:

Q: How is the EN19 VD Route and Annealed Forged Round Bar manufactured?

A: The bar is produced using a heavy duty forging method, followed by vacuum degassing (VD) and an annealing thermal treatment. This process helps refine the grain structure, relieves internal stresses, and improves overall performance.

Q: What benefits does the annealed delivery condition provide?

A: Annealing enhances the machinability of the bar, making it easier to process in subsequent manufacturing steps. This heat treatment also boosts impact strength and reduces brittleness, offering improved toughness for heavy-duty applications.

Q: When is stock available and what is the lead time for delivery?

A: Stock is available on order, and the lead time is determined based on the specifics of each order. Suppliers work closely with customers to ensure timely delivery tailored to the project's requirements.

Q: Where can EN19 VD Route and Annealed Round Bars be supplied from?

A: These round bars are manufactured, distributed, and supplied by a network of dealers, exporters, importers, and retailers across India. They are also available for global export.

Q: What testing and quality control measures are performed on the bars?

A: Each bar undergoes ultra-sonic and crack testing to ensure there are no internal or surface defects. Strict adherence to roundness tolerance and edge smoothness further guarantees product quality.

Q: How can these bars be used in industrial applications?

A: Owing to their high impact strength, tight tolerances, and smooth condition, these bars are ideal for components in heavy machinery, automotive parts, shafts, spindles, and other mechanically demanding scenarios.
